18DIN BLACK TAMPER EVIDENT CLOSURE WITH HORIZONTAL DROPPER INSERT 0.8MM ORIFICE INFO

☰

ADD TO PROJECT

Add/Update

ADD TO PROJECT

1009162

PLASTIC TAMPER EVIDENT CLOSURE: 18-DIN BLACK RIB SIDE / MATTE TOP PP DROPPER CAP W/ HORIZONTAL DROPPER INSERT 0.8 ORIFICE

18DIN BLACK TAMPER EVIDENT CLOSURE WITH HORIZONTAL DROPPER INSERT 0.8MM ORIFICE

18DIN BLACK TAMPER EVIDENT CLOSURE WITH HORIZONTAL DROPPER INSERT 0.8MM ORIFICE-detail image

❮ ❯

PRINT SPECS

INQUIRE ABOUT THIS PRODUCT

Availability: Production Stock
Min. Order Qty.: 5000

1009162

PLASTIC TAMPER EVIDENT CLOSURE: 18-DIN BLACK RIB SIDE / MATTE TOP PP DROPPER CAP W/ HORIZONTAL DROPPER INSERT 0.8 ORIFICE

PRINT SPECS

SPECIFICATIONS

Click Each Square For More Info

Size
Overflow Capacity
Neck Diameter: 18.00
Neck Finish: DIN
Material: PP PLASTIC
Color: BLACK
Shape
Item Weight
Item Height: 15.30 mm
Item Length: mm
Item Width / Diameter: 19.00 mm
Blow Technology
Liner
Surface Finish: RIB SIDE / MATTE TOP
Dip Tube Length
Orifice Size: 0.8
Output

Packing Details

Click Each Square For More Info

Packing Method: Bulk Carton
Carton Count: 6000
Carton Weight: 16.00
Carton Dimension (L): 22.44
Carton Dimension (W): 14.96
Carton Dimension (H): 12.99
Carton / Pallet: 20
Pallet Dimension (W): 31.47 IN
Pallet Dimension (L): 47.74 IN
Pallet Dimension (H): 74.80 IN

Product Notes

HORIZONTAL DROPPER INSERT:
- Horizontal droppers are also commonly known as rim droppers. These dosage systems cover an extremely wide spectrum of use. They are used in application areas where the exactness of the dropping volume may vary slightly and is not critical for dosage. This variance results from the varying angle of about 120° - 150° at which the bottle is held by individual consumers.
- Horizontal droppers are an excellent choice when you want to use the same dropper for different liquid applications.
- The drops flow over the rim of the dropper and do not come into contact with the neck of the bottle when doing so. This prevents the accumulation of drops of liquid on the outside of the bottle.
- The horizontal dropper is available with different dosage orifice sizes.

Containers that match this Closure

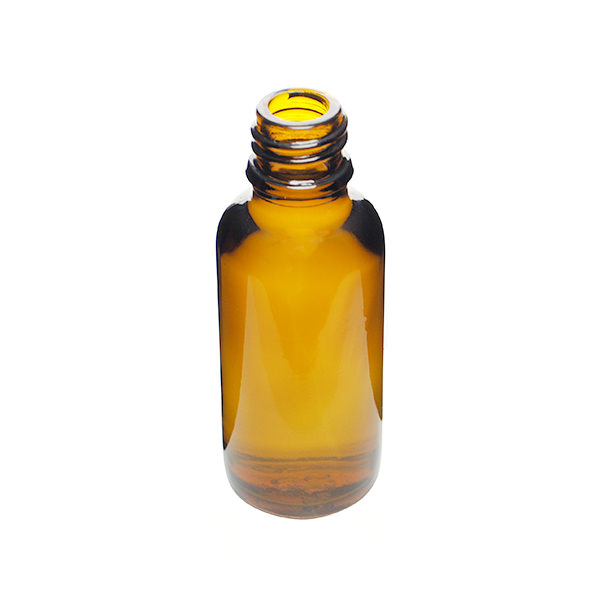

20ML AMBER DROPPER GLASS BOTTLE - 18MM NECK

GLASS BOTTLE: 20ML AMBER GLASS ROUND WITH 18MM NECK DIAMETER

SPECIFICATIONS

ADD TO PROJECT

Add/Update

ADD TO PROJECT

5ML AMBER GLASS DROPPER ROUND - 18-DIN NECK

GLASS BOTTLE: 5ML Amber GLASS DROPPER ROUND WITH 18-DIN NECK FINISH

SPECIFICATIONS

ADD TO PROJECT

Add/Update

ADD TO PROJECT

30ML AMBER GLASS STANDARD DROPPER ROUND - 18-DIN NECK

GLASS BOTTLE: 30ML Amber GLASS STANDARD ROUND WITH 18-DIN NECK FINISH

SPECIFICATIONS

ADD TO PROJECT

Add/Update

ADD TO PROJECT

10ML AMBER GLASS TALL DROPPER ROUND - 18-DIN NECK

GLASS BOTTLE: 10ML Amber GLASS TALL DROPPER ROUND WITH 18-DIN NECK FINISH

SPECIFICATIONS

ADD TO PROJECT

Add/Update

ADD TO PROJECT

Packaging Crash Course - Closures 101

Common container and closure dimension specifications were established to ensure a perfect fit and successful packaging. Learn about them here.

How To Measure A Bottle Neck Or Cap

The neck of a bottle has many critical and exacting dimensions. And there are many sizes and countless styles of caps to choose from. The secret to a great fit? The "T" dimension!

And that's precisely what we show you in this O.Berk^® Packaging Crash Course Video: How To Measure A Bottle Neck Or Cap. In less than a minute and a half you'll learn the key to pairing a great looking bottle with a perfectly-fitting cap.
